Kind: Subsystem

Class: Support

Type: System

Archived Data System

Overview

The 'Archived Data System' collects, archives, manages, and distributes data generated from ITS sources for use in transportation administration, policy evaluation, safety, planning, performance monitoring, program assessment, operations, and research applications. The data received is formatted and tagged with attributes that define the data source, conditions under which it was collected, data transformations, and other information (i.e. meta data) necessary to interpret the data. The archive can fuse ITS generated data with data from non-ITS sources and other archives to generate information products utilizing data from multiple functional areas, modes, and jurisdictions. The archive prepares data products that can serve as inputs to federal, state, and local data reporting systems. The 'Archived Data System' may reside within an operational center and provide focused access to a particular agency's data archives. Alternatively, it may operate as a distinct center that collects data from multiple agencies and sources and provides a general data warehouse service.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Alternate Mode Transportation Center multimodal archive data Archived Data System
Archived Data Administrator archive management requests Archived Data System
Archived Data System archive status Alternate Mode Transportation Center
Archived Data System archive management data Archived Data Administrator
Archived Data System archive analysis results Archived Data User System
Archived Data System archive request confirmation Archived Data User System
Archived Data System archived data products Archived Data User System
Archived Data System archive status Asset Management System
Archived Data System archive status Border Inspection Administration Center
Archived Data System archive status Commercial Vehicle Administration Center
Archived Data System archive status Emergency Management Center
Archived Data System archive status Emissions Management Center
Archived Data System government reporting system data Government Reporting Systems
Archived Data System archive status Intermodal Terminal
Archived Data System data collection and monitoring control ITS Roadway Equipment
Archived Data System archive status Maint and Constr Management Center
Archived Data System archive coordination Other Archived Data Systems
Archived Data System archive status Other Data Sources
Archived Data System archive status Parking Management Center
Archived Data System archive status Payment Administration Center
Archived Data System archive status Surface Transportation Weather Service
Archived Data System archive status Traffic Management Center
Archived Data System archive status Transit Management Center
Archived Data System archive status Transportation Information Center
Archived Data System archive status Weather Service System
Archived Data User System archive analysis requests Archived Data System
Archived Data User System archived data product requests Archived Data System
Asset Management System asset archive data Archived Data System
Border Inspection Administration Center border information archive data Archived Data System
Commercial Vehicle Administration Center commercial vehicle archive data Archived Data System
Connected Vehicle Roadside Equipment local situation data Archived Data System
Emergency Management Center emergency archive data Archived Data System
Emissions Management Center emissions archive data Archived Data System
Government Reporting Systems government reporting data receipt Archived Data System
Intermodal Terminal intermodal freight archive data Archived Data System
ITS Roadway Equipment roadside archive data Archived Data System
Maint and Constr Management Center maint and constr archive data Archived Data System
Other Archived Data Systems archive coordination Archived Data System
Other Data Sources other data source archive data Archived Data System
Parking Management Center parking archive data Archived Data System
Payment Administration Center payment archive data Archived Data System
Surface Transportation Weather Service transportation weather information Archived Data System
Traffic Management Center traffic archive data Archived Data System
Transit Management Center transit archive data Archived Data System
Transportation Information Center traveler archive data Archived Data System
Weather Service System weather archive data Archived Data System

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 High High High Automated Traffic Signal Performance Measures (ATSPM)
Class 5 High High High Comprehensive Transportation Data Warehouse
Class 5 High High High Distributed Data Warehouse
Class 5 High High High ITS Data Warehouse
Class 5 High High High Performance Monitoring
Class 5 High High High Public Transportation Data Mart
Class 5 High High High Traffic Data Mart

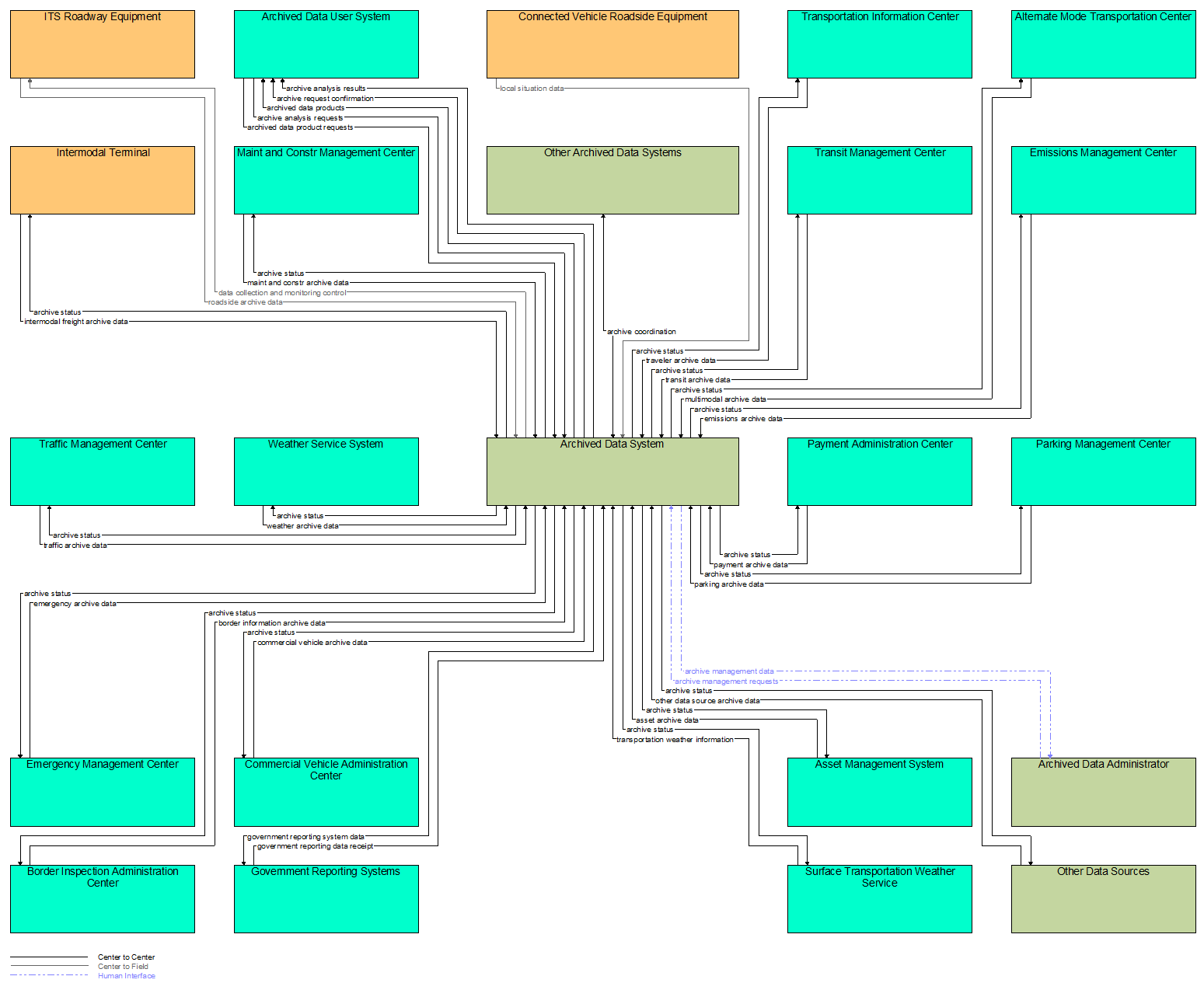

Interfaces Diagram

Interfaces diagram

Standards

The following table lists the standards associated with the physical object itself (as opposed to standards associated with an interface). For standards related to interfaces, see the specific information flow triple pages.

Name Title
NEMA TS 8 Cyber and Physical Security Cyber and Physical Security for Intelligent Transportation Systems
