TM23: Border Management Systems

This service package provides international border crossing management for passenger vehicles and other non-commercial travelers crossing the border. This service package manages traffic at the border crossing, provides technology to support expedited processing of trusted travelers, and collects and disseminates border wait times.

Relevant Regions: Australia, Canada, European Union, and United States

Enterprise

Development Stage Roles and Relationships

Installation Stage Roles and Relationships

Operations and Maintenance Stage Roles and Relationships
(hide)

Source Destination Role/Relationship
Border Inspection Administration Center Maintainer Border Inspection Administration Center Maintains
Border Inspection Administration Center Manager Border Inspection Administration Center Manages
Border Inspection Administration Center Owner Border Inspection Administration Center Maintainer System Maintenance Agreement
Border Inspection Administration Center Owner Border Inspection Administration Center Manager Operations Agreement
Border Inspection Administration Center Owner Border Inspection System Maintainer Maintenance Data Exchange Agreement
Border Inspection Administration Center Owner Border Inspection System Owner Information Provision Agreement
Border Inspection Administration Center Owner Border Inspection System User Service Usage Agreement
Border Inspection Administration Center Owner Personal Information Device Maintainer Maintenance Data Exchange Agreement
Border Inspection Administration Center Owner Personal Information Device Owner Information Provision Agreement
Border Inspection Administration Center Owner Personal Information Device User Service Usage Agreement
Border Inspection Administration Center Supplier Border Inspection Administration Center Owner Warranty
Border Inspection System Maintainer Border Inspection System Maintains
Border Inspection System Manager Border Inspection System Manages
Border Inspection System Owner Border Inspection Administration Center Maintainer Maintenance Data Exchange Agreement
Border Inspection System Owner Border Inspection Administration Center Owner Information Exchange and Action Agreement
Border Inspection System Owner Border Inspection Administration Center User Service Usage Agreement
Border Inspection System Owner Border Inspection System Maintainer System Maintenance Agreement
Border Inspection System Owner Border Inspection System Manager Operations Agreement
Border Inspection System Owner Connected Vehicle Roadside Equipment Maintainer Maintenance Data Exchange Agreement
Border Inspection System Owner Connected Vehicle Roadside Equipment Owner Information Exchange and Action Agreement
Border Inspection System Owner Connected Vehicle Roadside Equipment User Service Usage Agreement
Border Inspection System Owner Light Vehicle Driver Application Usage Agreement
Border Inspection System Owner Light Vehicle OBE Maintainer Maintenance Data Exchange Agreement
Border Inspection System Owner Light Vehicle OBE Owner Information Exchange and Action Agreement
Border Inspection System Owner Light Vehicle OBE User Service Usage Agreement
Border Inspection System Owner Traffic Management Center Maintainer Maintenance Data Exchange Agreement
Border Inspection System Owner Traffic Management Center Owner Information Exchange and Action Agreement
Border Inspection System Owner Traffic Management Center User Service Usage Agreement
Border Inspection System Owner Transportation Information Center Maintainer Maintenance Data Exchange Agreement
Border Inspection System Owner Transportation Information Center Owner Information Exchange and Action Agreement
Border Inspection System Owner Transportation Information Center User Service Usage Agreement
Border Inspection System Supplier Border Inspection System Owner Warranty
Connected Vehicle Roadside Equipment Maintainer Connected Vehicle Roadside Equipment Maintains
Connected Vehicle Roadside Equipment Manager Connected Vehicle Roadside Equipment Manages
Connected Vehicle Roadside Equipment Owner Border Inspection System Maintainer Maintenance Data Exchange Agreement
Connected Vehicle Roadside Equipment Owner Border Inspection System Owner Information Exchange and Action Agreement
Connected Vehicle Roadside Equipment Owner Border Inspection System User Service Usage Agreement
Connected Vehicle Roadside Equipment Owner Connected Vehicle Roadside Equipment Maintainer System Maintenance Agreement
Connected Vehicle Roadside Equipment Owner Connected Vehicle Roadside Equipment Manager Operations Agreement
Connected Vehicle Roadside Equipment Owner Light Vehicle Driver Application Usage Agreement
Connected Vehicle Roadside Equipment Owner Light Vehicle OBE Maintainer Maintenance Data Exchange Agreement
Connected Vehicle Roadside Equipment Owner Light Vehicle OBE Owner Information Exchange and Action Agreement
Connected Vehicle Roadside Equipment Owner Light Vehicle OBE User Service Usage Agreement
Connected Vehicle Roadside Equipment Owner Traffic Management Center Maintainer Maintenance Data Exchange Agreement
Connected Vehicle Roadside Equipment Owner Traffic Management Center Owner Information Exchange and Action Agreement
Connected Vehicle Roadside Equipment Owner Traffic Management Center User Service Usage Agreement
Connected Vehicle Roadside Equipment Supplier Connected Vehicle Roadside Equipment Owner Warranty
Light Vehicle Driver Light Vehicle OBE Operates
Light Vehicle OBE Maintainer Light Vehicle OBE Maintains
Light Vehicle OBE Manager Light Vehicle Driver System Usage Agreement
Light Vehicle OBE Manager Light Vehicle OBE Manages
Light Vehicle OBE Owner Border Inspection System Maintainer Maintenance Data Exchange Agreement
Light Vehicle OBE Owner Border Inspection System Owner Expectation of Data Provision
Light Vehicle OBE Owner Border Inspection System User Service Usage Agreement
Light Vehicle OBE Owner Connected Vehicle Roadside Equipment Maintainer Maintenance Data Exchange Agreement
Light Vehicle OBE Owner Connected Vehicle Roadside Equipment Owner Expectation of Data Provision
Light Vehicle OBE Owner Connected Vehicle Roadside Equipment User Service Usage Agreement
Light Vehicle OBE Owner Light Vehicle OBE Maintainer System Maintenance Agreement
Light Vehicle OBE Owner Light Vehicle OBE Manager Operations Agreement
Light Vehicle OBE Supplier Light Vehicle OBE Owner Warranty
Personal Information Device Maintainer Personal Information Device Maintains
Personal Information Device Manager Personal Information Device Manages
Personal Information Device Owner Border Inspection Administration Center Maintainer Maintenance Data Exchange Agreement
Personal Information Device Owner Border Inspection Administration Center Owner Information Provision and Action Agreement
Personal Information Device Owner Border Inspection Administration Center User Service Usage Agreement
Personal Information Device Owner Personal Information Device Maintainer System Maintenance Agreement
Personal Information Device Owner Personal Information Device Manager Operations Agreement
Personal Information Device Supplier Personal Information Device Owner Warranty
Traffic Management Center Maintainer Traffic Management Center Maintains
Traffic Management Center Manager Traffic Management Center Manages
Traffic Management Center Owner Traffic Management Center Maintainer System Maintenance Agreement
Traffic Management Center Owner Traffic Management Center Manager Operations Agreement
Traffic Management Center Supplier Traffic Management Center Owner Warranty
Transportation Information Center Maintainer Transportation Information Center Maintains
Transportation Information Center Manager Transportation Information Center Manages
Transportation Information Center Owner Transportation Information Center Maintainer System Maintenance Agreement
Transportation Information Center Owner Transportation Information Center Manager Operations Agreement
Transportation Information Center Supplier Transportation Information Center Owner Warranty
Traveler Card Maintainer Traveler Card Maintains
Traveler Card Manager Traveler Card Manages
Traveler Card Owner Border Inspection System Maintainer Maintenance Data Exchange Agreement
Traveler Card Owner Border Inspection System Owner Information Provision and Action Agreement
Traveler Card Owner Border Inspection System User Service Usage Agreement
Traveler Card Owner Light Vehicle Driver Application Usage Agreement
Traveler Card Owner Light Vehicle OBE Maintainer Maintenance Data Exchange Agreement
Traveler Card Owner Light Vehicle OBE Owner Information Provision and Action Agreement
Traveler Card Owner Light Vehicle OBE User Service Usage Agreement
Traveler Card Owner Traveler Card Maintainer System Maintenance Agreement
Traveler Card Owner Traveler Card Manager Operations Agreement
Traveler Card Supplier Traveler Card Owner Warranty

Functional

This service package includes the following Functional View PSpecs:

Physical Object Functional Object PSpec Number PSpec Name
Border Inspection Administration Center Border Inspection Administration 2.8.4.1 Manage Registration For Border Inspection
2.8.4.2 Perform Border Inspection Pre-Processing
2.8.4.3 Manage Border Inspection
Border Inspection System Border Inspection 2.8.4.4 Perform Border Inspection
2.8.4.5 Manage Border Area Security and Traffic
Connected Vehicle Roadside Equipment RSE Border Management 1.1.2.6 Process Collected Vehicle Safety Data
1.1.6 Collect Vehicle Traffic Surveillance Data
2.3.9 Process Commercial Vehicle Roadside Messages
2.8.4.6 Exchange Border Clearance Roadside Information
RSE Traveler Information Communications 1.1.1.6 Collect Vehicle Roadside Safety Data
1.1.2.6 Process Collected Vehicle Safety Data
1.2.7.4 Process In-vehicle Signage Data
1.2.7.7 Process Vehicle Safety and Environmental Data for Output
1.5.10 Collect Vehicle Emissions Messages
2.8.4.6 Exchange Border Clearance Roadside Information
6.7.3.5 Provide Short Range Traveler Information
9.2.3.8 Collect Connected Vehicle Field Equipment Status
9.3.3.5 Manage Speeds at Roadside
Personal Information Device Personal Trip Planning and Route Guidance 6.8.1.1.1 Determine Personal Portable Device Guidance Method
6.8.1.1.2 Provide Personal Portable Device Dynamic Guidance
6.8.1.2 Provide Personal Portable Device Guidance Interface
6.8.1.4 Update Traveler Navigable Map Database
6.8.3.1 Get Traveler Personal Request
6.8.3.2 Provide Traveler with Personal Travel Information
6.8.3.3 Provide Traveler Personal Interface
6.8.3.5 Provide Traveler Transit Services Interface
7.5.3 Provide Personal Payment Device Interface
Traffic Management Center TMC Basic Surveillance 1.1.2.1 Process Traffic Data for Storage
1.1.2.2 Process Traffic Data
1.1.2.3 Update Data Source Static Data
1.1.2.5 Process Vehicle Situation Data
1.1.2.8 Process Roadway Environmental Data
1.1.3 Generate Predictive Traffic Model
1.1.4.1 Retrieve Traffic Data
1.1.4.2 Provide Traffic Operations Personnel Traffic Data Interface
1.1.5 Exchange Data with Other Traffic Centers
1.2.6.1 Maintain Traffic and Sensor Static Data
1.2.8 Collect Traffic Field Equipment Fault Data
1.3.1.1 Analyze Traffic Data for Incidents
1.3.2.1 Store Possible Incident Data
1.3.2.5 Provide Current Incidents Store Interface
1.3.2.6 Manage Traffic Routing
1.3.4.2 Provide Traffic Operations Personnel Incident Interface
1.3.4.5 Process Video Data
Transportation Information Center TIC Data Collection 6.2.1 Collect Misc Traveler Information
6.2.2 Collect Traffic Data
6.2.3 Collect Transit Operations Data
6.2.4 Collect Multimodal Data
6.2.5 Collect Situation and Sensor Data From Vehicles
6.2.6 Collect Emergency Traveler Data
6.5.4 Process Travel Services Provider Data
6.6.2.3 Provide Route Segment Data for Other Areas
7.4.2 Collect Price Data for Traveler Information Use
Vehicle Light Vehicle Border Crossing Support 6.7.3.1 Get Driver Personal Request
6.7.3.2 Provide Driver with Personal Travel Information
6.7.3.3 Provide Driver Information Interface
Vehicle Basic Safety Communication 3.1.1 Produce Collision and Crash Avoidance Data
3.1.3 Process Vehicle On-board Data
3.1.4 Communicate with Remote Vehicles
3.1.6 Provide Vehicle Acceleration and Deceleration Inputs
3.2.3.2 Manage Platoon Following
3.2.3.3 Process Data for Vehicle Actuators
3.2.3.5 Process Vehicle Sensor Data
3.2.4 Process Sensor Data for Automatic Vehicle Operations
6.7.1.2 Provide Driver Guidance Interface
6.7.1.3 Process Vehicle Location Data
6.7.1.4 Update Vehicle Navigable Map Database
6.7.3.3 Provide Driver Information Interface
Vehicle Traveler Information Reception 3.1.3 Process Vehicle On-board Data
3.1.4 Communicate with Remote Vehicles
3.2.3.3 Process Data for Vehicle Actuators
6.7.1.2 Provide Driver Guidance Interface
6.7.1.3 Process Vehicle Location Data
6.7.1.4 Update Vehicle Navigable Map Database
6.7.3.1 Get Driver Personal Request
6.7.3.2 Provide Driver with Personal Travel Information
6.7.3.3 Provide Driver Information Interface
7.1.4 Provide Driver Toll Payment Interface

Physical

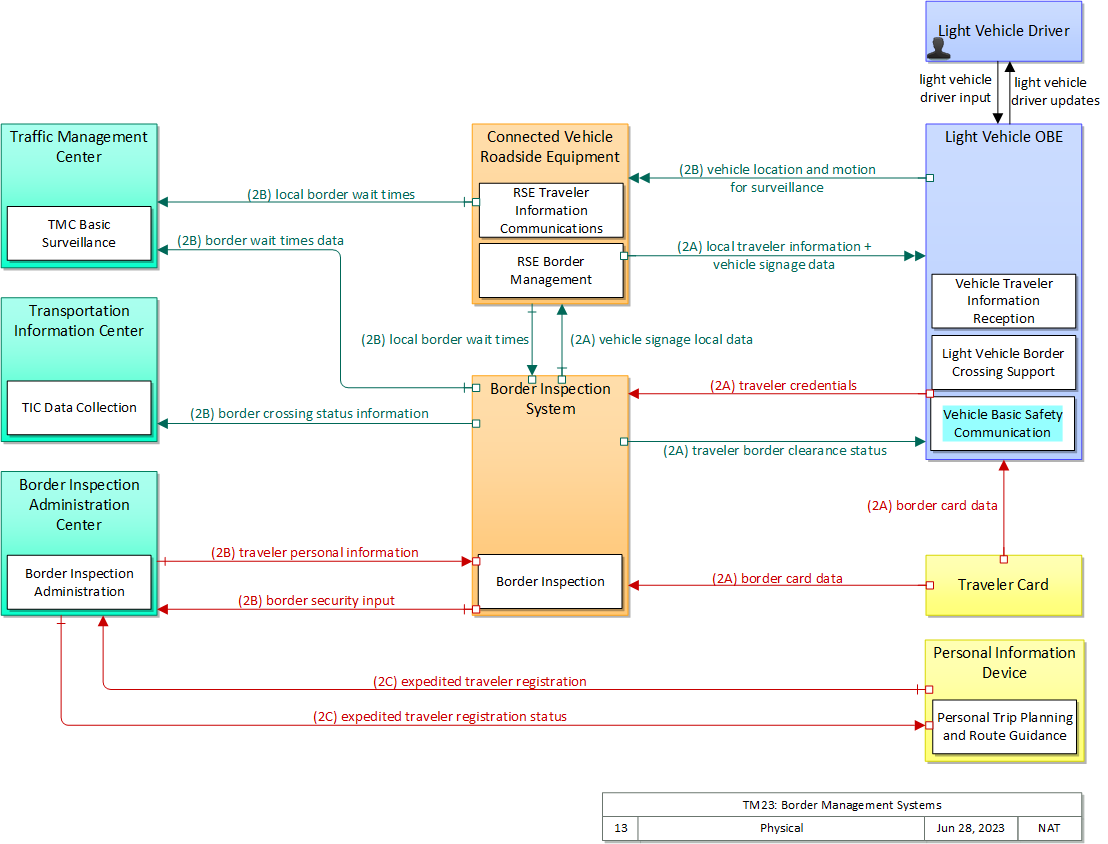

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram


Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object Class Description
Border Inspection Administration Center Center 'Border Inspection Administration Center' represents back-office systems and databases run by domestic and foreign governmental agencies responsible for the regulation of trade, and the enforcement of customs and immigration laws. These agencies include U.S. Department of Homeland Security (DHS) and its counterparts in Canada and Mexico. DHS includes components like Customs and Border Protection (CBP), Immigration and Customs Enforcement (ICE), and Transportation Security Administration (TSA). Other agencies include secondary trade agencies (e.g., U.S. Food and Drug Administration, U.S. Department of Agriculture, other USDOT departments, etc.), and agencies from other trading nations. The systems they manage coordinate activities related to the border crossings. These systems support import/export cargo processing and enforcement operations at the border, including programs such as FAST, Automated Commercial Environment (ACE), Nexus (Canada), SENTRI (Mexico), and US-VISIT.
Border Inspection System Field 'Border Inspection System' represents data systems used at the border for the inspection of people or goods. It supports immigration, customs (trade), agricultural, and FDA inspections as applicable. It includes sensors and surveillance systems to identify and classify drivers and their cargo as they approach a border crossing, the systems used to interface with the back-office administration systems and provide information on status of the crossing or events.
Connected Vehicle Roadside Equipment Field 'Connected Vehicle Roadside Equipment' (CV RSE) represents the Connected Vehicle roadside devices that are used to send messages to, and receive messages from, nearby vehicles using Dedicated Short Range Communications (DSRC) or other alternative wireless communications technologies. Communications with adjacent field equipment and back office centers that monitor and control the RSE are also supported. This device operates from a fixed position and may be permanently deployed or a portable device that is located temporarily in the vicinity of a traffic incident, road construction, or a special event. It includes a processor, data storage, and communications capabilities that support secure communications with passing vehicles, other field equipment, and centers.
Light Vehicle Driver Vehicle The 'Light Vehicle Driver' represents the person that operates a light vehicle on the roadway. This physical object covers the interactions that are specific to light, passenger vehicles. See also the 'Driver' physical object that covers interactions that are shared by operators of light, transit, commercial, and emergency vehicles where the interactions are not particular to the type of vehicle.
Light Vehicle OBE Vehicle The 'Light Vehicle OBE' includes traveler-oriented capabilities that apply to passenger cars, trucks, and motorcycles that are used for personal travel. The rules vary by jurisdiction, but generally light vehicles are restricted in their weight and the maximum number of passengers they can carry. In ARC-IT, the Light Vehicle OBE represents vehicles that are operated as personal vehicles that are not part of a vehicle fleet and are not used commercially; thus, the choice between the various vehicle subsystems should be based more on how the vehicle is used than how much the vehicle weighs. See also the 'Vehicle' subsystem that includes the general safety and information services that apply to all types of vehicles, including light vehicles.
Personal Information Device Personal The 'Personal Information Device' provides the capability for travelers to receive formatted traveler information wherever they are. Capabilities include traveler information, trip planning, and route guidance. Frequently a smart phone, the Personal Information Device provides travelers with the capability to receive route planning and other personally focused transportation services from the infrastructure in the field, at home, at work, or while en-route. Personal Information Devices may operate independently or may be linked with vehicle on-board equipment. This subsystem also supports safety related services with the capability to broadcast safety messages and initiate a distress signal or request for help.
Traffic Management Center Center The 'Traffic Management Center' monitors and controls traffic and the road network. It represents centers that manage a broad range of transportation facilities including freeway systems, rural and suburban highway systems, and urban and suburban traffic control systems. It communicates with ITS Roadway Equipment and Connected Vehicle Roadside Equipment (RSE) to monitor and manage traffic flow and monitor the condition of the roadway, surrounding environmental conditions, and field equipment status. It manages traffic and transportation resources to support allied agencies in responding to, and recovering from, incidents ranging from minor traffic incidents through major disasters.
Transportation Information Center Center The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service.
Traveler Card Personal The 'Traveler Card' stores traveler identification information, including biometric information, that can be used in trusted traveler programs to expedite clearance through security checkpoints at borders or security-critical areas.

Includes Functional Objects:

Functional Object Description Physical Object
Border Inspection 'Border Inspection' manages and supports primary and secondary inspections at the border crossing. Border Inspection System
Border Inspection Administration 'Border Inspection Administration' performs administrative functions relating to the inspection of goods and vehicles at the border. Border Inspection Administration Center
Light Vehicle Border Crossing Support 'Vehicle Border Crossing Support' uses connected vehicle technology to exchange traveler credentials with border systems to support expedited clearance through international borders. Light Vehicle OBE
Personal Trip Planning and Route Guidance 'Personal Trip Planning and Route Guidance' provides a personalized trip plan to the traveler. The trip plan is calculated based on preferences and constraints supplied by the traveler and provided to the traveler for confirmation. Coordination may continue during the trip so that the route plan can be modified to account for new information. Many equipment configurations are possible including systems that provide a basic trip plan to the traveler as well as more sophisticated systems that can provide transition by transition guidance to the traveler along a multi-modal route with transfers. Devices represented by this functional object include desktop computers at home, work, or at major trip generation sites, plus personal devices such as tablets and smart phones. Personal Information Device
RSE Border Management 'RSE Border Management' supports border operations, providing functions that measure border wait times and provide wait times and other traveler information to approaching vehicles. Short range communications with vehicles and associated equipment supports collection of traveler, vehicle, and cargo information and credentials. Connected Vehicle Roadside Equipment
RSE Traveler Information Communications 'RSE Traveler Information Communications' includes field elements that distribute information to vehicles for in-vehicle display. The information may be provided by a center (e.g., variable information on traffic and road conditions in the vicinity of the field equipment) or it may be determined and output locally (e.g., static sign information and signal phase and timing information). This includes the interface to the center or field equipment that controls the information distribution and the short range communications equipment that provides information to passing vehicles. Connected Vehicle Roadside Equipment
TIC Data Collection 'TIC Data Collection' collects transportation-related data from other centers, performs data quality checks on the collected data and then consolidates, verifies, and refines the data and makes it available in a consistent format to applications that support operational data sharing between centers and deliver traveler information to end-users. A broad range of data is collected including traffic and road conditions, transit data, emergency information and advisories, weather data, special event information, traveler services, parking, multimodal data, and toll/pricing data. It also shares data with other transportation information centers. Transportation Information Center
TMC Basic Surveillance 'TMC Basic Surveillance' remotely monitors and controls traffic sensor systems and surveillance (e.g., CCTV) equipment, and collects, processes and stores the collected traffic data. Current traffic information and other real-time transportation information is also collected from other centers. The collected information is provided to traffic operations personnel and made available to other centers. Traffic Management Center
Vehicle Basic Safety Communication 'Vehicle Basic Safety Communication' exchanges current vehicle location and motion information with other vehicles in the vicinity, uses that information to calculate vehicle paths, and warns the driver when the potential for an impending collision is detected. If available, map data is used to filter and interpret the relative location and motion of vehicles in the vicinity. Information from on-board sensors (e.g., radars and image processing) are also used, if available, in combination with the V2V communications to detect non-equipped vehicles and corroborate connected vehicle data. Vehicle location and motion broadcasts are also received by the infrastructure and used by the infrastructure to support a wide range of roadside safety and mobility applications. This object represents a broad range of implementations ranging from basic Vehicle Awareness Devices that only broadcast vehicle location and motion and provide no driver warnings to advanced integrated safety systems that may, in addition to warning the driver, provide collision warning information to support automated control functions that can support control intervention. Vehicle
Vehicle Traveler Information Reception 'Vehicle Traveler Information Reception' receives advisories, vehicle signage data, and other driver information of use to all types of vehicles and drivers and presents this information to the driver using in-vehicle equipment. Information presented may include fixed sign information, traffic control device status (e.g., signal phase and timing data), advisory and detour information, warnings of adverse road and weather conditions, travel times, and other driver information. Vehicle

Includes Information Flows:

Information Flow Description
border card data Personal identification data from ID cards used by travelers at border crossings.
border crossing status information Port of entry status including current wait-times, lane configuration and status including closures and restrictions, and notification of incidents at the border
border security input Information regarding security related events occurring at the border.
border wait times data Measure of current, actual, or predicted wait time at border. Measurement provided by vehicle type, lane, and type of lane (e.g., NEXUS vs. regular).
expedited traveler registration Application for expedited traveler programs, such as NEXUS, Global Entry, Viajero Confiable, etc. Includes electronic filing of forms and associated payment. Applications for commercial vehicle driver may be completed through CVO services (see 'expedited clearance registration' flow).
expedited traveler registration status Status of expedited traveler registration.
light vehicle driver input Driver input to the light vehicle on-board equipment including configuration data, settings and preferences, interactive requests, and control commands.
light vehicle driver updates Information provided to the light vehicle driver including visual displays, audible information and warnings, and haptic feedback. The updates inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment.
local border wait times Current border wait time calculated by the RSE based on data collected from passing connected vehicles.
local traveler information Traveler information including traffic, road, and weather conditions for a particular locality. This flow includes the location-specific traveler information and time effectivity of the information.
traveler border clearance status Information indicating whether border clearance has been granted and instructions if additional processing is required.
traveler credentials Traveler identification, including trusted traveler program information, if applicable.
traveler personal information This flow includes biometric and other data to allow recognition of travelers.
vehicle location and motion for surveillance Data describing the vehicle's location in three dimensions, heading, speed, acceleration, braking status, and size. This flow represents monitoring of basic safety data ('vehicle location and motion') broadcast by passing connected vehicles for use in vehicle detection and traffic monitoring applications.
vehicle signage data In-vehicle signing data that augments regulatory, warning, and informational road signs and signals. The information provided would include static sign information (e.g., stop, curve warning, guide signs, service signs, and directional signs) and dynamic information (e.g., local traffic and road conditions, restrictions, vehicle requirements, work zones, detours, closures, advisories, and warnings).
vehicle signage local data Information provided by adjacent field equipment to support in-vehicle signing of dynamic information that is currently being displayed to passing drivers. This includes the dynamic information (e.g., local traffic and road conditions, work zone information, lane restrictions, detours, closures, advisories, parking availability, etc.) and control parameters that identify the desired timing, duration, and priority of the signage data.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor Goal
A. Support the economic vitality of the metropolitan area, especially by enabling global competitiveness, productivity, and efficiency; Improve freight network
D. Increase the accessibility and mobility of people and for freight; Reduce congestion
F. Enhance the integration and connectivity of the transportation system, across and between modes, for people and freight; Enhance integration and connectivity
G. Promote efficient system management and operation; Improve efficiency
J. Enhance travel and tourism. Support travel and tourism

Associated Objective Categories

Objective Category
Freight Management: Border Crossing
Freight Management: Customer Satisfaction
Freight Management: Travel Time Delay
Freight Management: Travel Time Reliability
Integration: Connectivity
System Efficiency: Delay
System Efficiency: Trip Connectivity
Traveler Information: Data Collection and Sharing on Travel Conditions

Associated Objectives and Performance Measures

Objective Performance Measure
Decrease average crossing times at international borders by X minutes for each border in the region over Y years. Average border crossing time for freight at international borders per year.
Decrease hours of delay per 1,000 vehicle miles traveled on selected freight-significant highways by X percent in Y years. Hours of delay per 1,000 vehicle miles on selected freight-significant highways.
Decrease point-to-point travel times on selected freight-significant highways by Y minutes within Y years. Point-to-point travel times on selected freight-significant highways.
Decrease the annual average travel time index for freight by X points in Y years. Travel time index: ratio of observed average travel time to free-flow travel time.
Increase ratings for customer satisfaction with freight mobility in the region among shippers, receivers, and carriers by X percent in Y years. Percentage of customers satisfied with region's freight management practices.
Increase the mobility index ([Ton-miles of travel] / [Vehicle-miles of travel * Average speed]) by X percent in Y years. Mobility index for system users defined as [Ton-miles of travel] / [Vehicle-miles of travel * Average speed].
Increase the percent of the transportation system in which travel conditions can be detected remotely via CCTV, speed detectors, etc. to X percent by Y year. Percent of the transportation system in which travel conditions can be detected remotely via CCTV, speed detectors, etc.
Increase the use of electronic credentialing to X percent of weigh stations and border crossings by year Y. Percent of weigh stations and border crossings in the region that use electronic credentialing.
Reduce buffer index on regional freight routes during peak and off-peak periods by X percent in Y years. Buffer Index on regional freight routes during peak and off-peak period.
Reduce door-to-door trip time by X percent by year Y. Average door-to-door trip time.
Reduce hours of delay per driver by X percent by year Y. Hours of delay (person-hours).
Reduce hours of delay per driver by X percent by year Y. Hours of delay per driver.



Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need Functional Object Requirement
01 Traffic Operation needs to be able to collect transportation related data, including border crossing data in order to support planning and research activities that span the US land border crossings. Border Inspection 01 The border field equipment shall provide border wait time data for traffic management centers.
RSE Border Management 02 The field element shall collect border clearance data from systems at the border to support planning and research activities, including Number of people (passengers, drivers, and vehicle operators), Number of vehicles, and Types of Goods.
TMC Basic Surveillance 01 The center shall monitor, analyze, and store traffic sensor data (speed, volume, occupancy) collected from field elements under remote control of the center.
06 The center shall maintain a database of surveillance equipment and sensors and associated data (including the roadway on which they are located, the type of data collected, and the ownership of each).
07 The center shall remotely control devices to detect traffic.
Vehicle Basic Safety Communication 06 The vehicle shall exchange location and motion information with roadside equipment and nearby vehicles.
02 Border Inspection Operations need to be able to verify if the people crossing into the country have proper credentials to allow them to enter. Border Inspection 02 The border field equipment shall collect traveler credentials information as travelers approach a land border crossing to support the determination that a traveler is in compliance with border crossing regulations.
03 The border field equipment shall provide border security-related information occurring at the border to transportation centers.
Border Inspection Administration 01 The center shall provide traveler data to allow recognition of travelers.
03 Border Inspection Operations need to be able to verify if the vehicle coming into the country have proper credentials to allow them to enter and comply with federal laws and regulations. Border Inspection 03 The border field equipment shall provide border security-related information occurring at the border to transportation centers.
RSE Border Management 03 The field element shall collect vehicle credentials information as vehicles approach a land border crossing to support the determination that a vehicle is in compliance with border crossing regulations.
RSE Traveler Information Communications 08 Border Management shall send a notification to the vehicle whether the vehicle is allowed to cross the border.
04 Traffic Operations need to be able to provide border status for drivers approaching the border crossing or planning to cross. Border Inspection 05 The border field equipment shall provide border crossing status information for traveler information service providers.
Light Vehicle Border Crossing Support 01 The vehicle shall receive international border clearance information pertaining to the vehicle or traveler.
02 The vehicle shall receive border clearance information and present it to driver.
Personal Trip Planning and Route Guidance 11 The personal traveler interface shall provide the traveler with updates regarding their expedited border clearance registration.
RSE Border Management 05 The field element shall send suggested speed per lane to connected vehicles approaching a border crossing.
RSE Traveler Information Communications 07 Border Management shall notify travelers whether they are allowed to cross the border.
TIC Data Collection 11 The center shall collect, process, and store border crossing information.
05 Traffic Operation centers, and other border stakeholders need to be able to monitor the traffic flow data at or near a border crossing using data from vehicles and mobile devices. RSE Border Management 01 The field element shall collect traffic conditions data from vehicles acting as probes operating near a land border crossing.
04 The field element shall measure border wait times using the data collected from vehicles and associated equipment.
TMC Basic Surveillance 01 The center shall monitor, analyze, and store traffic sensor data (speed, volume, occupancy) collected from field elements under remote control of the center.
06 The center shall maintain a database of surveillance equipment and sensors and associated data (including the roadway on which they are located, the type of data collected, and the ownership of each).
07 The center shall remotely control devices to detect traffic.

Related Sources

Document Name Version Publication Date
Border Information Flow Architecture 5/16/2012


Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object Confidentiality Integrity Availability Security Class
Border Inspection Administration Center Moderate High Moderate Class 3
Border Inspection System High High High Class 5
Connected Vehicle Roadside Equipment Low Moderate Moderate Class 1
Light Vehicle OBE High High High Class 5
Personal Information Device Moderate Moderate Moderate Class 2
Traffic Management Center Not Applicable Low Low Class 1
Transportation Information Center Low Low Low Class 1
Traveler Card High Moderate High Class 5



In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source Destination Information Flow Confidentiality Integrity Availability
Basis Basis Basis
Border Inspection Administration Center Border Inspection System traveler personal information Moderate High Moderate
This flow includes PII of travelers. If it also includes the necessary challenge questions and response to impersonate that individual, it could be classified as a HIGH. False data here could allow someone to impersonate someone else. This may lead to an unauthorized person entering the country. The system must have an acknowledgement of a missed message. If this data is not received, the traveler will have to identify themselves through the traditional methods, such as a passport.
Border Inspection Administration Center Personal Information Device expedited traveler registration status Moderate Moderate Moderate
Contains PII to support the application. Must be accurate and timely or the border clearance will not be expedited and will not function without other intervention. Must be accurate and timely or the border clearance will not be expedited and will not function without other intervention.
Border Inspection System Border Inspection Administration Center border security input Moderate Moderate Low
Since this is describing events that already occurred it is possible that someone could observe these by sitting at the border and watching. However some things in this may be slightly sensitive in nature and should not be completely visible to anyone. If this flow could carry instructions to be acted on at a later point (e.g. "Suspicious traveler, pull over down the road and investigate"), this could potentially be HIGH because it is potentially national security related information; however, it is not clear from the CVRIA description whether or not this will be the case. This information could affect how the BIAC responds to a request on a person in the future. As such this information should be relatively secure; however mistakes in the information do not have a major impact on anything. This information requires an acknowledgment of receipt, but if a message is missed it could be sent again at a later time without any impact on the rest of the system.
Border Inspection System Connected Vehicle Roadside Equipment vehicle signage local data Low Moderate Moderate
This data is intentionally transmitted to everyone via a broadcast. It is meant to augment other signage data, and by definition is meant to be shared with everyone. These signs are meant to augment other visual cues to the driver. They should be accurate, but any inaccuracies should be corrected for by other means. These notifications are helpful to a driver, but if the driver does not receive this notification immediately, there should still be other visual cues.
Border Inspection System Light Vehicle OBE traveler border clearance status Low High Moderate
This is directly observable data. This message is directly acted upon. It should not be possible to spoof a border inspection station bypass. The system should know if these messages are not received. If the messages are not received, the system should fail safely, with the border agents performing additional inspections.
Border Inspection System Traffic Management Center border wait times data Not Applicable Moderate Low
This is directly observable data. Some minimal guarantee of data integrity is necessary for all C-ITS flows. If this information is used to determine how thoroughly to investigate passing vehicles (ie. When it is busy vehicles are subject to less thorough inspection) this flow could be bumped up to a MEDIUM. DISC: Original V2I analysis classified this as LOW. If this information is not fully up to date, or is missing, the system can still operate properly.
Border Inspection System Transportation Information Center border crossing status information Low Moderate Low
This is all public information which is mostly available through public information channels. Some minimal guarantee of data integrity is necessary for all C-ITS flows. A flaw in this information will not cause much, if any harm. A higher integrity will allow this information to be of more use, but is not required for security reasons. DISC: Original V2I analysis classified this as LOW. Without this information there will not be any direct problem. A higher availability will allow this information to be more useful; however it is not a requirement.
Connected Vehicle Roadside Equipment Border Inspection System local border wait times Not Applicable Moderate Low
This is directly observable data. Some minimal guarantee of data integrity is necessary for all C-ITS flows. If this information is used to determine how thoroughly to investigate passing vehicles (ie. When it is busy vehicles are subject to less thorough inspection) this flow could be bumped up to a MEDIUM. DISC: Original V2I analysis classified this as LOW. If this information is not fully up to date, or is missing, the system can still operate properly.
Connected Vehicle Roadside Equipment Traffic Management Center local border wait times Not Applicable Moderate Low
This is directly observable data If this information is used to determine how thoroughly to investigate passing vehicles (ie. When it is busy vehicles are subject to less thorough inspection) this flow could be bumped up to a MEDIUM. If this information is not fully up to date, or is missing, the system can still operate properly.
Light Vehicle Driver Light Vehicle OBE light vehicle driver input Moderate High High
Data included in this flow may include origin and destination information, which should be protected from other's viewing as it may compromise the driver's privacy. Commands from from the driver to the vehicle must be correct or the vehicle may behave in an unpredictable and possibly unsafe manner Commands must always be able to be given or the driver has no control.
Light Vehicle OBE Border Inspection System traveler credentials High Moderate Moderate
This contains sensitive information on multiple individuals that could potentially be used to impersonate them or steal their identity. If anyone other than the intended parties can view this information it could lead to a large financial cost for many individuals. The identity reported by this transmission might not actually be the individual in the vehicle. If a border officer can add information that gets sent to the BIS, then the integrity requirement could potentially be raised to HIGH as this flow might be used to make law enforcement decisions involving the use of force. We assume that if this information is added it is added at the BIS rather than the RSE, so this integrity requirement on this flow is MEDIUM. Assuming it is still possible to validate travelers in the way that is currently possible this is acceptable as a MEDIUM. If when this system is down, the border cannot process any individuals then this would need to be a HIGH because completely shutting down the border could cause significant financial problems.
Light Vehicle OBE Light Vehicle Driver light vehicle driver updates Not Applicable Moderate Moderate
This data is informing the driver about the safety of a nearby area. It should not contain anything sensitive, and does not matter if another person can observe it. This is the information that is presented to the driver. If they receive incorrect information, they may act in an unsafe manner. However, there are other indicators that would alert them to any hazards, such as an oncoming vehicle or crossing safety lights. If this information is not made available to the driver, then the system has not operated correctly.
Personal Information Device Border Inspection Administration Center expedited traveler registration Moderate Moderate Moderate
Contains PII to support the application. Must be accurate and timely or the border clearance will not be expedited and will not function without other intervention. Must be accurate and timely or the border clearance will not be expedited and will not function without other intervention.
Traveler Card Border Inspection System border card data High Moderate High
This data contains all of the information needed to identify a traveler. If a criminal was able to view this data, it could be used to impersonate the traveler. The identity reported by this transmission might not actually be the individual in the vehicle. As such there is no way that this could have HIGH integrity, and is why other sources must be used to ensure that this individual is who they are claiming to be. If the traveler card data was not delivered to the RSE by Vehicle OBE this will be the last chance for the card to be validated. If it fails, the traveler will likely be turned away from the border and not be allowed to cross. This would be equivalent to arriving at the border today without a passport, however it would be the system's fault, not the user's. Since there is no alternate way for an individual to prove their identity, this could break the whole system and should not happen.
Traveler Card Light Vehicle OBE border card data High Moderate High
This data contains all of the information needed to identify a traveler. If a criminal was able to view this data, it could be used to impersonate the traveler. The identity reported by this transmission might not actually be the individual in the vehicle. As such there is no way that this could have HIGH integrity, and is why other sources must be used to ensure that this individual is who they are claiming to be. If the traveler card data was not delivered to the RSE by Vehicle OBE this will be the last chance for the card to be validated. If it fails, the traveler will likely be turned away from the border and not be allowed to cross. This would be equivalent to arriving at the border today without a passport, however it would be the system's fault, not the user's. Since there is no alternate way for an individual to prove their identity, this could break the whole system and should not happen.

Standards

The following table lists the standards associated with physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages.

Name Title Physical Object
CTI 4001 RSU Dedicated Short-Range Communications Roadside Unit Specifications (FHWA-JPO-17-589) Connected Vehicle Roadside Equipment
NEMA TS 8 Cyber and Physical Security Cyber and Physical Security for Intelligent Transportation Systems Traffic Management Center




System Requirements

System Requirement Need
001 The system shall provide traveler data to allow recognition of travelers. 02 Border Inspection Operations need to be able to verify if the people crossing into the country have proper credentials to allow them to enter.
002 The system shall collect, process, and store border crossing information. 04 Traffic Operations need to be able to provide border status for drivers approaching the border crossing or planning to cross.
003 The system shall monitor, analyze, and store traffic sensor data (speed, volume, occupancy) collected from field elements under remote control of the center. 01 Traffic Operation needs to be able to collect transportation related data, including border crossing data in order to support planning and research activities that span the US land border crossings.
05 Traffic Operation centers, and other border stakeholders need to be able to monitor the traffic flow data at or near a border crossing using data from vehicles and mobile devices.
004 The system shall maintain a database of surveillance equipment and sensors and associated data (including the roadway on which they are located, the type of data collected, and the ownership of each). 01 Traffic Operation needs to be able to collect transportation related data, including border crossing data in order to support planning and research activities that span the US land border crossings.
05 Traffic Operation centers, and other border stakeholders need to be able to monitor the traffic flow data at or near a border crossing using data from vehicles and mobile devices.
005 The system shall remotely control devices to detect traffic. 01 Traffic Operation needs to be able to collect transportation related data, including border crossing data in order to support planning and research activities that span the US land border crossings.
05 Traffic Operation centers, and other border stakeholders need to be able to monitor the traffic flow data at or near a border crossing using data from vehicles and mobile devices.
006 The system shall provide border wait time data for traffic management centers. 01 Traffic Operation needs to be able to collect transportation related data, including border crossing data in order to support planning and research activities that span the US land border crossings.
007 The system shall collect traveler credentials information as travelers approach a land border crossing to support the determination that a traveler is in compliance with border crossing regulations. 02 Border Inspection Operations need to be able to verify if the people crossing into the country have proper credentials to allow them to enter.
008 The system shall provide border security-related information occurring at the border to transportation centers. 02 Border Inspection Operations need to be able to verify if the people crossing into the country have proper credentials to allow them to enter.
03 Border Inspection Operations need to be able to verify if the vehicle coming into the country have proper credentials to allow them to enter and comply with federal laws and regulations.
009 The system shall provide border crossing status information for traveler information service providers. 04 Traffic Operations need to be able to provide border status for drivers approaching the border crossing or planning to cross.
010 The system shall collect traffic conditions data from vehicles acting as probes operating near a land border crossing. 05 Traffic Operation centers, and other border stakeholders need to be able to monitor the traffic flow data at or near a border crossing using data from vehicles and mobile devices.
011 The system shall collect border clearance data from systems at the border to support planning and research activities, including Number of people (passengers, drivers, and vehicle operators), Number of vehicles, and Types of Goods. 01 Traffic Operation needs to be able to collect transportation related data, including border crossing data in order to support planning and research activities that span the US land border crossings.
012 The system shall collect vehicle credentials information as vehicles approach a land border crossing to support the determination that a vehicle is in compliance with border crossing regulations. 03 Border Inspection Operations need to be able to verify if the vehicle coming into the country have proper credentials to allow them to enter and comply with federal laws and regulations.
013 The system shall measure border wait times using the data collected from vehicles and associated equipment. 05 Traffic Operation centers, and other border stakeholders need to be able to monitor the traffic flow data at or near a border crossing using data from vehicles and mobile devices.
014 The system shall notify travelers whether they are allowed to cross the border. 04 Traffic Operations need to be able to provide border status for drivers approaching the border crossing or planning to cross.
04 Traffic Operations need to be able to provide border status for drivers approaching the border crossing or planning to cross.
015 The system shall send a notification to the vehicle whether the vehicle is allowed to cross the border. 03 Border Inspection Operations need to be able to verify if the vehicle coming into the country have proper credentials to allow them to enter and comply with federal laws and regulations.
016 The system shall provide the traveler with updates regarding their expedited border clearance registration. 04 Traffic Operations need to be able to provide border status for drivers approaching the border crossing or planning to cross.
017 The system shall exchange location and motion information with roadside equipment and nearby vehicles. 01 Traffic Operation needs to be able to collect transportation related data, including border crossing data in order to support planning and research activities that span the US land border crossings.
018 The system shall receive international border clearance information pertaining to the vehicle or traveler. 04 Traffic Operations need to be able to provide border status for drivers approaching the border crossing or planning to cross.
019 The system shall receive border clearance information and present it to driver. 04 Traffic Operations need to be able to provide border status for drivers approaching the border crossing or planning to cross.
