SU07: ITS Communications
This service package provides secure, reliable communications between ITS devices. It provides the layered protocols and communications services and includes the physical network plant and network hardware that supports ITS communications. It also encompasses security services that protect communications and preserve privacy, and the management services that support network management.
Relevant Regions: Australia, Canada, European Union, and United States
- Enterprise
- Functional
- Physical
- Goals and Objectives
- Needs and Requirements
- Sources
- Security
- Standards
- System Requirements
Enterprise
Development Stage Roles and Relationships
Installation Stage Roles and Relationships
Operations and Maintenance Stage Roles and Relationships
(hide)
Source | Destination | Role/Relationship |
---|---|---|
ITS Communications Equipment Maintainer | ITS Communications Equipment | Maintains |
ITS Communications Equipment Manager | ITS Communications Equipment | Manages |
ITS Communications Equipment Owner | ITS Communications Equipment Maintainer | System Maintenance Agreement |
ITS Communications Equipment Owner | ITS Communications Equipment Manager | Operations Agreement |
ITS Communications Equipment Supplier | ITS Communications Equipment Owner | Warranty |
ITS Object Maintainer | ITS Object | Maintains |
ITS Object Manager | ITS Object | Manages |
ITS Object Owner | ITS Communications Equipment Owner | Expectation of Information Provision |
ITS Object Owner | ITS Object Maintainer | System Maintenance Agreement |
ITS Object Owner | ITS Object Manager | Operations Agreement |
ITS Object Owner | Wide Area Information Disseminator System Owner | Expectation of Information Provision |
ITS Object Supplier | ITS Object Owner | Warranty |
Other ITS Objects Maintainer | Other ITS Objects | Maintains |
Other ITS Objects Manager | Other ITS Objects | Manages |
Other ITS Objects Owner | ITS Communications Equipment Owner | Expectation of Information Provision |
Other ITS Objects Owner | Other ITS Objects Maintainer | System Maintenance Agreement |
Other ITS Objects Owner | Other ITS Objects Manager | Operations Agreement |
Other ITS Objects Supplier | Other ITS Objects Owner | Warranty |
Roadside Communications Unit Maintainer | Roadside Communications Unit | Maintains |
Roadside Communications Unit Manager | Roadside Communications Unit | Manages |
Roadside Communications Unit Owner | Roadside Communications Unit Maintainer | System Maintenance Agreement |
Roadside Communications Unit Owner | Roadside Communications Unit Manager | Operations Agreement |
Roadside Communications Unit Supplier | Roadside Communications Unit Owner | Warranty |
Wide Area Information Disseminator System Maintainer | Wide Area Information Disseminator System | Maintains |
Wide Area Information Disseminator System Manager | Wide Area Information Disseminator System | Manages |
Wide Area Information Disseminator System Owner | Wide Area Information Disseminator System Maintainer | System Maintenance Agreement |
Wide Area Information Disseminator System Owner | Wide Area Information Disseminator System Manager | Operations Agreement |
Wide Area Information Disseminator System Supplier | Wide Area Information Disseminator System Owner | Warranty |
Functional
This service package includes the following Functional View PSpecs:
Physical

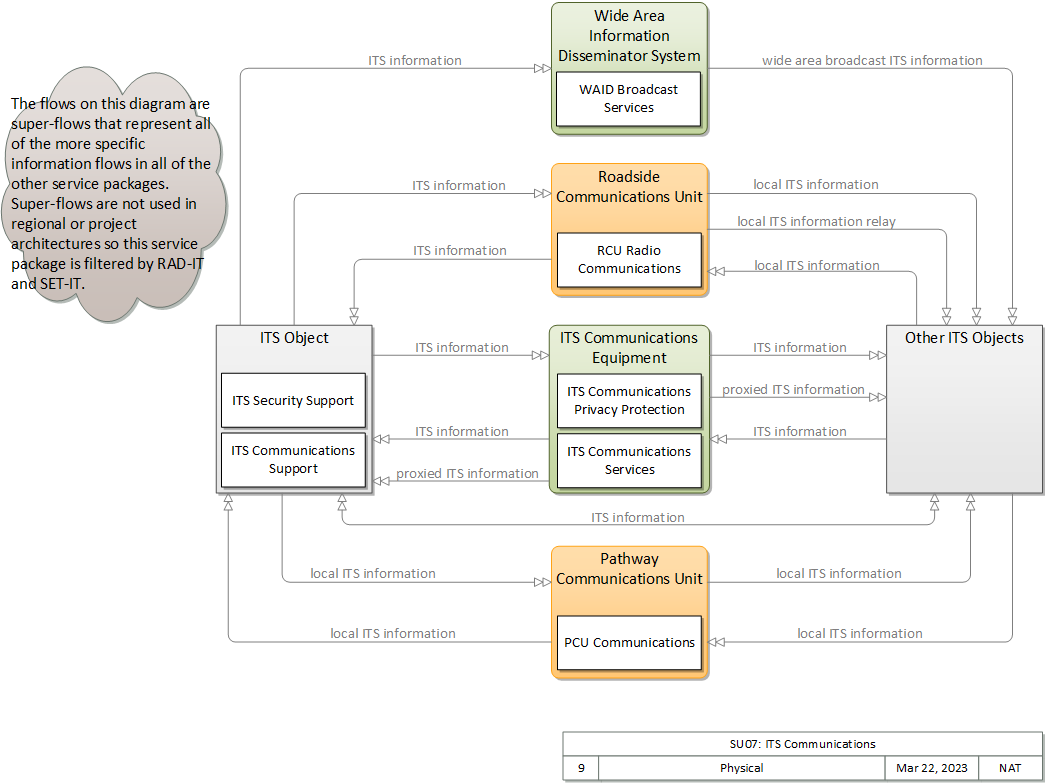

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.SVG Diagram
PNG Diagram
Includes Physical Objects:
Physical Object | Class | Description |
---|---|---|
ITS Communications Equipment | Support | 'ITS Communications Equipment' includes the communications hardware and software that supports secure, reliable communications. It provides the layered protocols and communications services and includes the physical network plant and network hardware that supports ITS communications. It also encompasses security services that protect communications and the management services that support network management. This physical object allows transportation stakeholders that are implementing their own communications solution to represent this implementation in their ITS architecture. The communications capabilities provided by this physical object are frequently purchased from a third party provider. When communications is a purchased service, the hardware and software included in this physical object are largely transparent to transportation stakeholders and may be transparent to the ITS architecture. |
ITS Object | ITS | The general 'ITS Object' includes core capabilities common to any class of object. |
Other ITS Objects | ITS | Representing other ITS Objects, 'Other ITS Objects' provides a source and destination for information exchange between ITS Objects. |
Pathway Communications Unit | Field | The 'Pathway Communications Unit' provides wireless communications between the pathway infrastructure (either indoor or outdoor) and nearby mobile devices; Communications with adjacent field equipment (including other PCUs) and back-office centers that monitor and control the PCU are also supported. The PCU provides basic radio communications supporting the lower layers of the OSI stack (TransNet and SubNet layers of the ARC-IT communications model). Importantly, it can also serve as a reference for mobile devices to determine their position more accurately (e.g., through triangulation or other means). |
Roadside Communications Unit | Field | The 'Roadside Communications Unit' provides wireless communications between roadside infrastructure and nearby equipped vehicles. Communications with adjacent field equipment (including other RCUs) and back office centers that monitor and control the RCU are also supported. It provides basic radio communications supporting the lower layers of the OSI stack (TransNet and SubNet layers of the ARC-IT communications model). See also 'Connected Vehicle Roadside Equipment' that extends the basic RCU radio communications functionality with a full communications stack and support for locally installed ITS Applications |
Wide Area Information Disseminator System | Support | The 'Wide Area Information Disseminator System' represents the center based systems and communications equipment that is used to send messages to equipped vehicles using wide-area wireless communications such as satellite radio, terrestrial FM broadcast subcarrier, or cellular data networks. |
Includes Functional Objects:
Functional Object | Description | Physical Object |
---|---|---|
ITS Communications Privacy Protection | 'ITS Communications Privacy Protection' operates as a proxy, obscuring the originator's network address, and tagging the message so that it can return replies to the originator. | ITS Communications Equipment |
ITS Communications Services | 'ITS Communications Services' supports secure, reliable data communications between connected devices. It includes the network devices as well as any required physical cabling and supporting hardware that represent the communications infrastructure that originate, route, and terminate data communications between a source and a destination. Applications specific protocols are layered over more general communications protocols to support the communications. Network management keeps the network configured and working reliably. Security services ensure the data received is correct and from an authentic source. | ITS Communications Equipment |
ITS Communications Support | 'ITS Communications Support' provides means to send and receive messages to and from other ITS Objects. It provides mechanisms for scheduling and prioritizing communications traffic. It may also provide relay functions. | ITS Object |
ITS Security Support | 'ITS Security Support' provides communications and system security functions to the ITS Object, including privacy protection functions. It may include firewall, intrusion management, authentication, authorization, profile management, identity management, cryptographic key management. It may include a hardware security module and security management information base. | ITS Object |
PCU Communications | 'PCU Communications' provides basic radio communications between pathway infrastructure and nearby mobile devices. Communications with adjacent field equipment (including other PCUs) and back office centers that monitor and control the PCU are also supported. It supports the lower layers of the OSI stack, specifically the TransNet and SubNet layers of the ARC-IT communications model. Message relay capabilities are also included to improve radio communications range, reliability, and performance. | Pathway Communications Unit |
RCU Radio Communications | 'RCU Radio Communications' provides basic radio communications between roadside infrastructure and nearby equipped vehicles and mobile devices. Communications with adjacent field equipment (including other RCUs) and back office centers that monitor and control the RCU are also supported. It supports the lower layers of the OSI stack, specifically the TransNet and SubNet layers of the ARC-IT communications model. Message relay capabilities are also included to improve radio communications range, reliability, and performance. | Roadside Communications Unit |
WAID Broadcast Services | 'WAID Broadcast Services' provides wide-area digital broadcast of traveler information to transportation users across a region. It collects traveler information of interest to clientele (either subscribers or the general public) and distributes the traveler information using broadcast data services that are offered in context with entertainment and other data services. | Wide Area Information Disseminator System |
Includes Information Flows:
Information Flow | Description |
---|---|
ITS information | Information exchanged by ITS systems or devices. This flow is a super-flow; it does not define specific content since it represents any information flow exchange between physical objects defined in ARC-IT. This information flow represents any of those information flows and inherits the data content and attributes defined in the more detailed information flows. |
local ITS information | ITS information that is relevant to a particular location (e.g., a particular intersection) that is of interest to receivers near that location. This flow is a super-flow; it does not define specific content since it represents any information flow exchange using short range communications between physical objects defined in ARC-IT. This includes both broadcast communications to all receivers within range and unicast communications targeted for a specific receiver. This information flow represents any of those information flows and inherits the data content and attributes defined in the more detailed information flows. |
local ITS information relay | Local ITS information that is relayed to improve range, reliability, and/or performance. This flow is a super-flow; it does not define specific content since it represents any relay of 'local ITS information' using short range communications. See 'local ITS information' for more information. |
proxied ITS information | Information exchanged by ITS systems or devices where the sender is isolated from the receiver by an intermediary that acts as a proxy for the sender. This flow is a super-flow; it does not define specific content since it represents any information flow exchange between physical objects defined in ARC-IT. This information flow represents any of those information flows and inherits the data content and attributes defined in the more detailed information flows. |
wide area broadcast ITS information | ITS information of broad interest that is relevant over a wide area and suitable for broadcast distribution. This flow is a super-flow; it does not define specific content since it represents all wide-area broadcast information flows defined in ARC-IT. This information flow represents any of those broadcast information flows and inherits the data content and attributes defined in the more detailed information flows. |
Goals and Objectives
Associated Planning Factors and Goals
Planning Factor | Goal |
---|---|
B. Increase the safety of the transportation system for motorized and nonmotorized users; | Reduce fatalities and injuries |
C. Increase the security of the transportation system for motorized and nonmotorized users; | Improve security |
Associated Objective Categories
Objective Category |
---|
Safety: Vehicle Crashes and Fatalities |
Security: Crime |
Security: Terrorism, Natural Disasters, and Hazardous Material Incidents |
Associated Objectives and Performance Measures
Needs and Requirements
Need | Functional Object | Requirement | ||
---|---|---|---|---|
01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). | ITS Communications Privacy Protection | 01 | The ITS Communications Equipment shall accept messages to be proxied from one ITS Object to another ITS Object. |
02 | The ITS Communications Equipment shall forward proxied messages to their destination ITS Object. | |||
03 | The ITS Communications Equipment shall maintain the source network address of a proxied message. | |||
04 | The ITS Communications Equipment shall use the source network address to return responses for proxied messages. | |||
ITS Communications Support | 01 | The ITS Object shall include a mechanism for scheduling message transmission distinct from the message's originating Functional Object. | ||
02 | The ITS Object shall include a mechanism for prioritizing message transmission based on input from originating Functional Object. | |||
03 | The ITS Object shall include a mechanism for relaying messages received using one physical communications medium to other ITS Objects using that same medium. | |||
04 | The ITS Object shall include a mechanism for relaying messages received using one physical communications medium to other ITS Objects using a different medium. | |||
ITS Security Support | 04 | The ITS Object shall provide a mechanism for on-board applications to digitally sign messages using keys secured by the CCMS' trust authority. | ||
05 | The ITS Object shall provide a mechanism for on-board applications to authenticate messages secured by the CCMS' trust authority. | |||
06 | The ITS Object shall provide a mechanism for on-board applications to encrypt messages using keys secured by the CCMS' trust authority. | |||
07 | The ITS Object shall provide a mechanism for on-board applications to decrypt messages using keys secured by the CCMS' trust authority. | |||
RCU Radio Communications | 01 | The field device shall provide radio communications between roadside infrastructure and nearby equipped vehicles. | ||
02 | System users need their messages to be communicated to their intended recipients. | ITS Communications Services | 01 | The center shall send messages to destinations specified in the message. |
WAID Broadcast Services | 01 | The support system shall provide wide-area digital broadcast of traveler information to transportation users across a region. |
Related Sources
Document Name | Version | Publication Date |
---|---|---|
ITS User Services Document | 1/1/2005 | |
Security Credential Management System Design | Draft | 4/13/2012 |
Vehicle-to-Vehicle Communications: Readiness of V2V Technology for Application | 8/1/2014 |
Security
In order to participate in this service package, each physical object should meet or exceed the following security levels.
Physical Object Security | ||||
---|---|---|---|---|
Physical Object | Confidentiality | Integrity | Availability | Security Class |
ITS Communications Equipment | High | High | High | Class 5 |
ITS Object | High | High | High | Class 5 |
Other ITS Objects | High | High | High | Class 5 |
Pathway Communications Unit | High | High | High | Class 5 |
Roadside Communications Unit | High | High | High | Class 5 |
Wide Area Information Disseminator System | High | High | High | Class 5 |
In order to participate in this service package, each information flow triple should meet or exceed the following security levels.
Information Flow Security | |||||
---|---|---|---|---|---|
Source | Destination | Information Flow | Confidentiality | Integrity | Availability |
Basis | Basis | Basis | |||
ITS Communications Equipment | ITS Object | ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
ITS Communications Equipment | ITS Object | proxied ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
ITS Communications Equipment | Other ITS Objects | ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
ITS Communications Equipment | Other ITS Objects | proxied ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
ITS Object | ITS Communications Equipment | ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
ITS Object | Other ITS Objects | ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
ITS Object | Pathway Communications Unit | local ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
ITS Object | Roadside Communications Unit | ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
ITS Object | Wide Area Information Disseminator System | ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
Other ITS Objects | ITS Communications Equipment | ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
Other ITS Objects | ITS Object | ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
Other ITS Objects | Pathway Communications Unit | local ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
Other ITS Objects | Roadside Communications Unit | local ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
Pathway Communications Unit | ITS Object | local ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
Pathway Communications Unit | Other ITS Objects | local ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
Roadside Communications Unit | ITS Object | ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
Roadside Communications Unit | Other ITS Objects | local ITS information | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
Roadside Communications Unit | Other ITS Objects | local ITS information relay | High | High | High |
This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE or LOW confidentiality requirement, then this could be MODERATE or LOW, as appropriate. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | This value is derived from the specific flows satisfied by this super-flow. HIGH is set because some flows may require it. If the implementation includes flows with only a MODERATE integrity requirement, then this could be MODERATE. | |||
Wide Area Information Disseminator System | Other ITS Objects | wide area broadcast ITS information | Not Applicable | Moderate | Low |
By definition this is publicly broadcast data. | The distribution of this data is intended to be very large, as such the impact of corrupted data will be significant. Probably not HIGH, as there are other distribution channels for this data. | There are multiple channels for the delivery of this information, so if this one is not available, others will work. Could consider raising this to MODERATE if it is the sole mechanism able to reach certain areas. |
Standards
The following table lists the standards associated with physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages.
Name | Title | Physical Object |
---|---|---|
CTI 4001 RSU | Dedicated Short-Range Communications Roadside Unit Specifications (FHWA-JPO-17-589) | Roadside Communications Unit |
FIPS 140-2 | Security Requirements for Cryptographic Modules | ITS Object |
ISO 21217 Architecture | Intelligent transport systems -- Communications access for land mobiles (CALM) -- Architecture | ITS Object |
System Requirements
System Requirement | Need | ||
---|---|---|---|
001 | The system shall include a mechanism for scheduling message transmission distinct from the message's originating Functional Object. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
002 | The system shall include a mechanism for prioritizing message transmission based on input from originating Functional Object. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
003 | The system shall include a mechanism for relaying messages received using one physical communications medium to other ITS Objects using that same medium. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
004 | The system shall include a mechanism for relaying messages received using one physical communications medium to other ITS Objects using a different medium. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
005 | The system shall provide a mechanism for on-board applications to digitally sign messages using keys secured by the CCMS' trust authority. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
006 | The system shall provide a mechanism for on-board applications to authenticate messages secured by the CCMS' trust authority. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
007 | The system shall provide a mechanism for on-board applications to encrypt messages using keys secured by the CCMS' trust authority. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
008 | The system shall provide a mechanism for on-board applications to decrypt messages using keys secured by the CCMS' trust authority. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
009 | The system shall provide radio communications between roadside infrastructure and nearby equipped vehicles. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
010 | The system shall accept messages to be proxied from one ITS Object to another ITS Object. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
011 | The system shall forward proxied messages to their destination ITS Object. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
012 | The system shall maintain the source network address of a proxied message. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
013 | The system shall use the source network address to return responses for proxied messages. | 01 | System operators, vehicle operators, support system operators, PID users need to be able communicate with other users without divulging their identity, location or other Personally Identifiable Information (PII). |
014 | The system shall send messages to destinations specified in the message. | 02 | System users need their messages to be communicated to their intended recipients. |
015 | The system shall provide wide-area digital broadcast of traveler information to transportation users across a region. | 02 | System users need their messages to be communicated to their intended recipients. |
